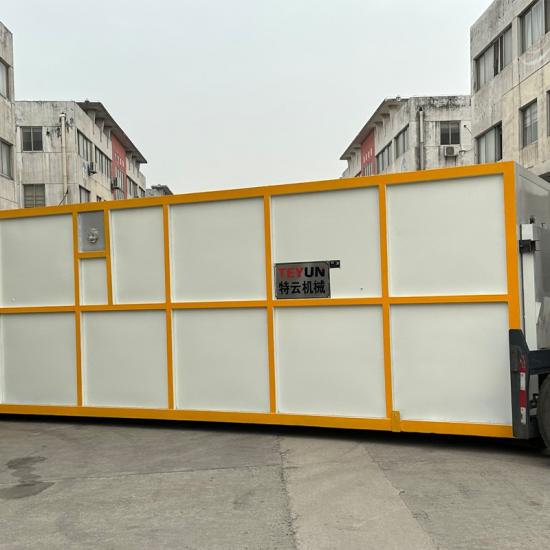

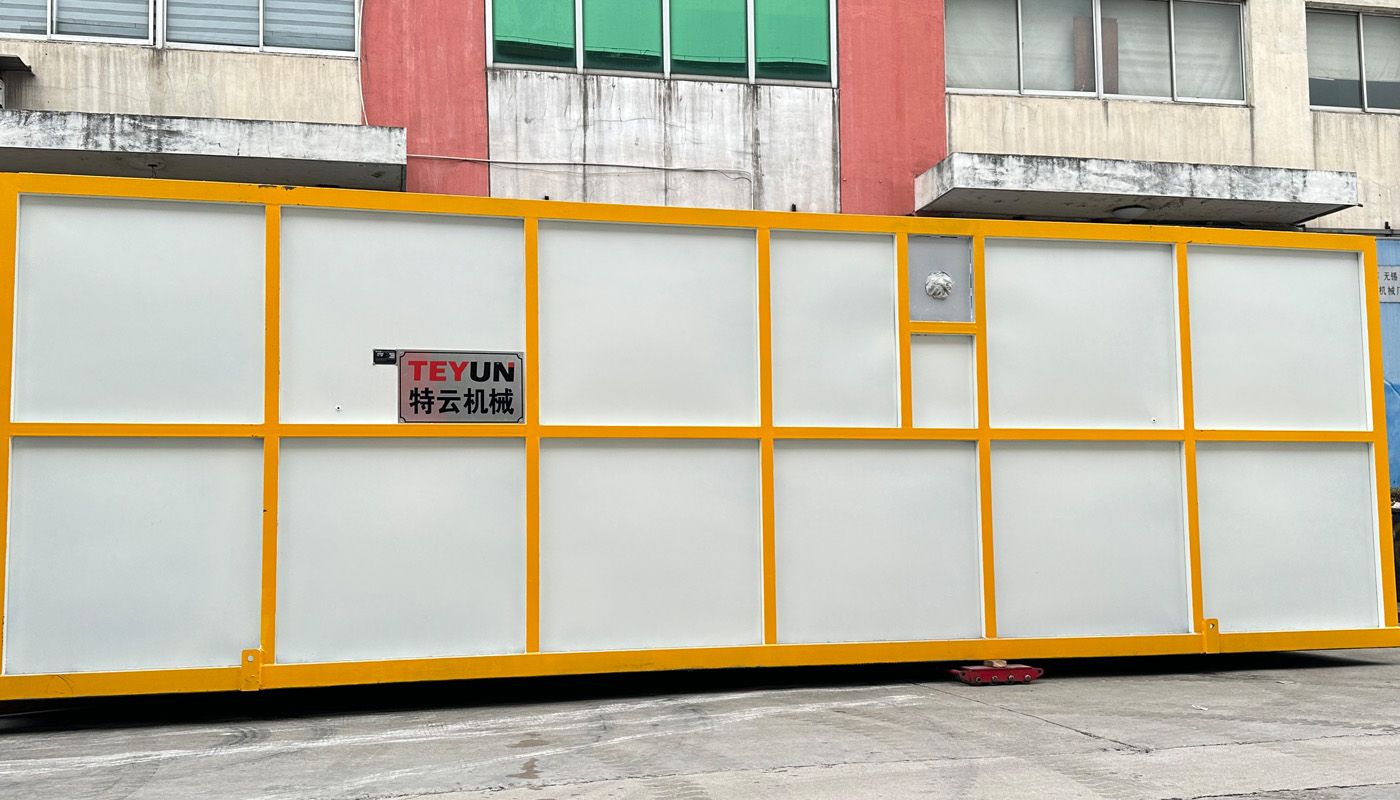

4 Baskets Aging Furnace

This aluminum extrusion aging furnace/oven is mainly used for the final hardening processing of the finished product, and quickly improves the intensity of aluminum profiles, which is conducive to the operation, storage and transportation of subsequent processes, and it is conducive to the normal use of customers. And the aluminum aging oven is divided into two types: one is the single door aging oven and another kind is the double door aging oven.

Double Door 9 Baskets Aging Furnace The 9 baskets aging furnace is a high-efficiency and energy-saving furnace type with the following functions and features: 1.High-efficiency combustion: The 9 baskets aging furnace adopts advanced combustion technology and design to achieve a high-efficiency combustion process. Maximize fuel utilization and reduce energy waste through reasonable air flow distribution and combustion chamber design. 2.Energy saving and environmental protection: This furnace type adopts an advanced heat energy recovery system, which can effectively utilize waste heat for energy recovery and reuse. This not only significantly reduces fuel consumption and reduces energy costs, but also reduces exhaust emissions and environmental pollution. 3.Multifunctional operation: The 9 baskets aging furnace is suitable for a variety of fuels, and different fuel types can be selected according to actual needs, such as gas, liquid fuel or solid fuel. At the same time, it is also suitable for a variety of industrial application fields, such as metallurgy, chemical industry, glass, etc., with wide adaptability. 4.Automated control: The furnace adopts an advanced automated control system, which can achieve precise control and adjustment of furnace temperature, pressure, flow and other parameters. It is easy to operate, can realize intelligent operation, and perform real-time monitoring and fault diagnosis through the monitoring system to improve production efficiency and safety performance. 5.High durability and reliability: The 9 baskets aging furnace adopts high-quality refractory materials and excellent structural design, and has good heat resistance and corrosion resistance. At the same time, the furnace structure is stable, the operation is safe and reliable, and it can operate stably for a long time, reducing maintenance and downtime.

Product Features The three-head tractor consists of two sets of tractors P1 and P2 and a set of P3 synchronous saw. It adopts an upper and lower two-layer four-guide rail design and is composed of precision elevator guide rail left and right structures. The traction machine head adopts an all-aluminum design. The body is light in weight, and the operation is flexible and light. This prevents the rapid traction of small materials from being too heavy when the traction machine head is too heavy when the extrusion stops, causing inertia during instantaneous braking and thinning of the aluminum profile. Eliminate vibration marks, prevent aluminum materials from deforming, and improve product production efficiency and yield. Servo motor, servo controls two sets of traction trolley pressing claws, swing arm function, no hydraulic system, to prevent hydraulic oil leakage from contaminating aluminum profiles, cooling beds and felts

Aluminum extrusion line including the aluminum extrusion press machine(this is the main press) and other auxiliary equipment (the muti-billet furnace, the aging oven, the cooling table, the puller), send us the drawings of the aluminum profiles you need to produce, we will prepare the whole aluminum extrusion line plan for you.

Horizontal Powder Coating Line for Aluminum Profiles (1) The coating quality comply the powder coating  filed standard.The technology use electrostatic coating process . (2) The line is automatic by using conveyor chain system. (3) The powder coating system use magic quick color change centre powder coating booth.The recycling system has filtering system and big cycling. (4) The curing oven use tunnel oven, hot air circulation is reasonable and try to reduce the heat loss to assure the temperature inside is even.The oven heating system use the most advanced technology-direct heating in China. It can save heating 10%-20%. Moreover, no smoke and don’t need add smoking removing system. (5) The waste treatment equipment, waste air equipment will be supply by buyer. (6) The powder coating line fully consider the energy saving, labour protection ,environmental protection, fire protection and comply the regulation and rule standard of coating field. The horizontal powder coating line consists of the following machines: NO. Descripition of the Equipment Qty 1 Magic quick quick color change powder spraying room with recycle system(use the most advanced technology in China) 1 set Powder coating room body 6.7×1.9×3.3（L×W×H）m 1 set Big cyclone separating first stage recycle system 1 set filtration core filter second stage recycle system 1 set 2 Lifter:use the latest structure, effective stroke 2200mm 2 sets 3 Powder curing oven inner size: L30000×W 700×H 3710 (mm) 1 set 4 Suspension conveyor system：(Single point lifting 50kg  100 m) 1 set 5 Electric control system (main components use Schneider brand  3 sets Temperature control system for drying oven 1 set Powder coating system and recycling system (PLC use Siemens brand series products, touch screen use 10.4 inch colorful touch screen ) 1 set Curing oven temperature controlling, heating exchange  control system and conveyor frequency control 1 set 6 First stage hanger Aluminum beam 16 sets 7 Joint venture electrostatic powder spraying gun Manual powder spraying gun 2 sets Auto-electrostatic powder spraying gun 6 sets 8 Air compressor system   1 set

Aluminum extrusion line including the aluminum extrusion press machine(this is the main press) and other auxiliary equipment (the muti-billet furnace, the aging oven, the cooling table, the puller), send us the drawings of the aluminum profiles you need to produce, we will prepare the whole aluminum extrusion line plan for you.

Aluminum extrusion line including the aluminum extrusion press machine(this is the main press) and other auxiliary equipment (the muti-billet furnace, the aging oven, the cooling table, the puller), send us the drawings of the aluminum profiles you need to produce, we will prepare the whole aluminum extrusion line plan for you.
