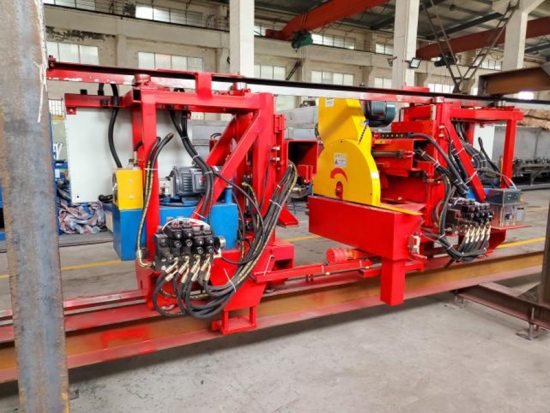

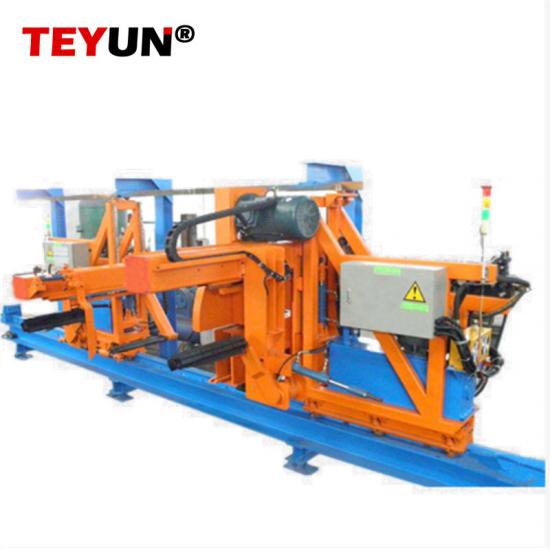

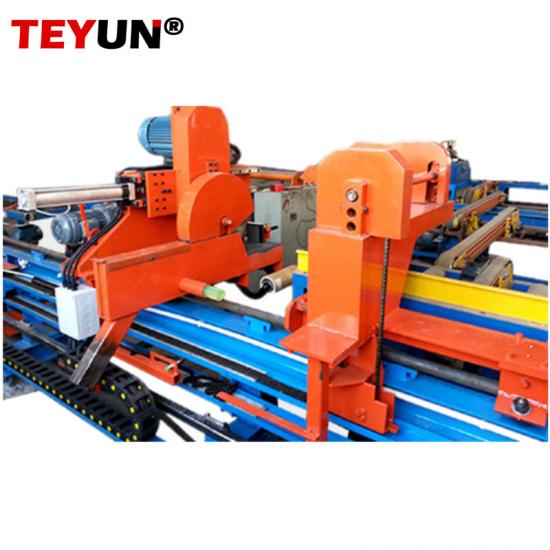

Aluminum Extrusion Single Puller

  • Brand:

    Teyun
  • Product Origin:

    Jiangsu,China
  • Color:

    Customized
  • Shipping Port:

    Shanghai
  • Lead Time:

    20days
  • Warranty:

    1 year
  • Certification:

    CE
  • Material / Metal Processed:

  • Voltage and frequency:

    380/50HZ
  • Application:

Aluminum Extrusion Single Puller (150kg)

The aluminum extrusion puller plays a role of traction on the plate material and unequal edge material with one mold and multiple small material profiles, so that the initial profile is straight and smooth.

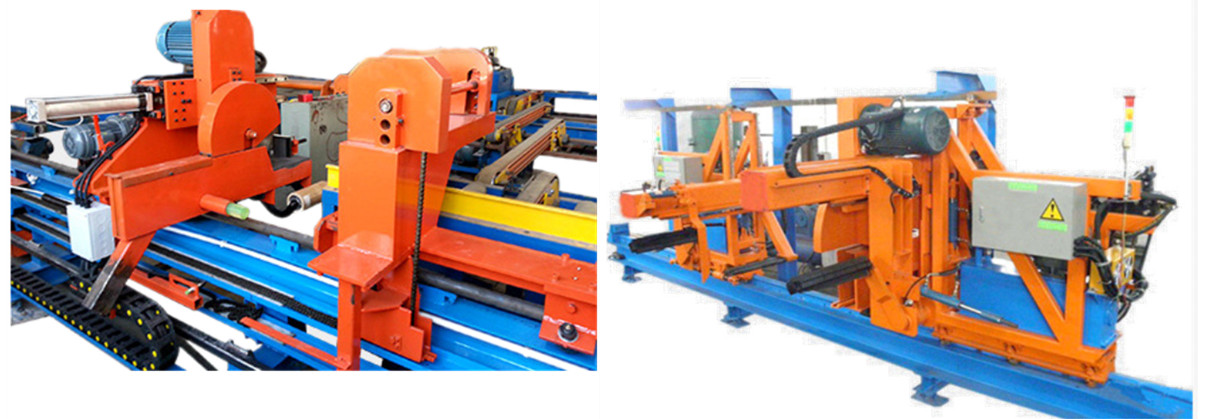

aluminum extrusion single puller


  • It is possible to set the appropriate traction force to play cool with various models and profiles.
  • The selected traction force can be added stably and automatically to extrude profiles at different speeds, and the required traction force is determined by the section and type of the extruded profile.
  • The traction speed can be synchronized with the extrusion speed of the extruded profile, and the jaws of the tractor are equipped with vertical clamps, which can clamp the extruded material on the plane during extrusion.
  • The jaws and clamps can loosen the extruded material and quickly return to the extruder surface, and the time required for the return is completed within the time when the extruder does not move.
  • It can extrude straight, neat, no bending and twisting and uniform length under the condition of a large number of operations in one machine, and improve the yield.

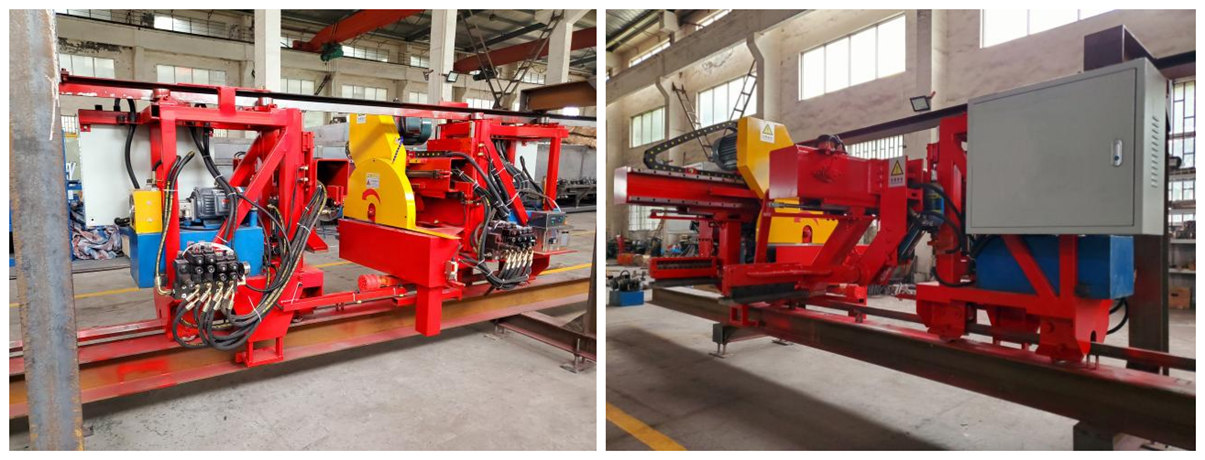

aluminum extrusion single puller


NO.

Frequency conversion single puller working parameters

1

Traction torque: 0---150kg. continuously adjustable

2

Traction speed: Synchronized with the host extrusion profile (0--50m/min)

3

Return speed: 0--120m/min

4

Maximum opening size of the material clamping: 150mm x120mm

5

Sawing line speed: ≈3200m/min (the saw blade is more durable and the profile cut surface is smoother)

6

Sawing pushing speed: ≤1000mm/s (pneumatically adjustable)

7

Sawing waste length: ≤200mm

8

External air pressure: 0.50.8Mpa, ≈0.3m3/h

9

Traction motor power: 7.5 kw

10

Interrupt sawing motor power: 5.5kw

11

Interrupt working: pneumatic

12

Programmable controller:Mitsubishi

13

Touchable screen:Mitsubishi

14

Traction track length: 26M

15

Power unit dimensions: 1.5M

16

Control mode: manual and automatic switching; realize linkage among press, puller and cooling table
