3 heads 4 tracks Double Puller

  • Brand:

    Teyun
  • Item NO.:

    3 heads 4 tracks Dou
  • Order(MOQ):

    1
  • Payment:

    LC/TT
  • Market Price:

    $45000
  • Price:

    $40000
  • Product Origin:

    Jiangsu, China
  • Color:

    white
  • Shipping Port:

    Shanghai port
  • Lead Time:

    1mouths
  • Weight:

    250kg
  • Warranty:

    1 year
  • Certification:

    CE/SIO
  • Material / Metal Processed:

    steel
  • Voltage and frequency:

    Client's choose
  • Application:

    For extrude the aluminum profiles

Product Features

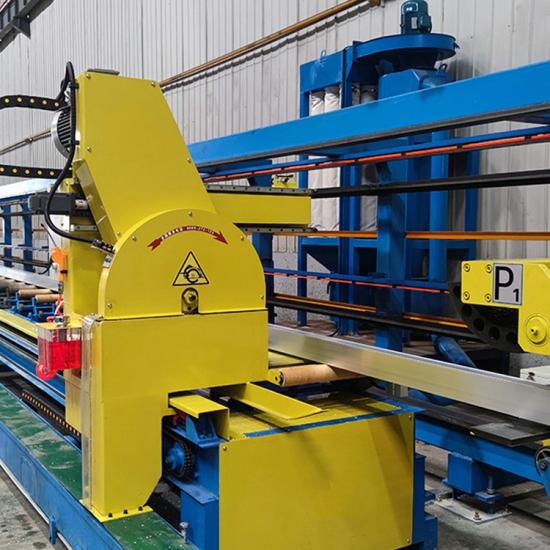

The three-head tractor consists of two sets of tractors P1 and P2 and a set of P3 synchronous saw.

It adopts an upper and lower two-layer four-guide rail design and is composed of precision elevator guide rail left and right structures.

The traction machine head adopts an all-aluminum design. The body is light in weight, and the operation is flexible and light. This prevents the rapid traction of small materials from being too heavy when the traction machine head is too heavy when the extrusion stops, causing inertia during instantaneous braking and thinning of the aluminum profile.


Eliminate vibration marks, prevent aluminum materials from deforming, and improve product production efficiency and yield.

Servo motor, servo controls two sets of traction trolley pressing claws, swing arm function, no hydraulic system, to prevent hydraulic oil leakage from contaminating aluminum profiles, cooling beds and felts
