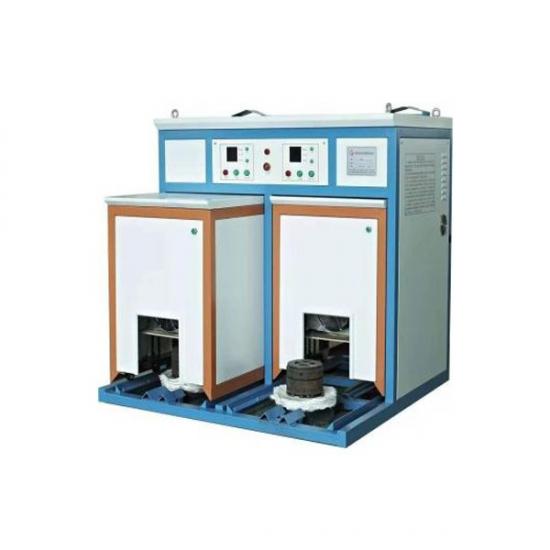

Fast Mold Oven

The heat source of mold oven is an iron-aluminum alloy electric heating wire, which is characterized by high efficiency and energy saving. It can effectively reflect heat to the furnace inside. The mold oven frame is designed with a high temperature resistant stainless steel cut-out structure, which has good mechanical strength and good ventilation and light passing effects.

Aluminum extrusion line including the aluminum extrusion press machine(this is the main press) and other auxiliary equipment (the muti-billet furnace, the aging oven, the cooling table, the puller), send us the drawings of the aluminum profiles you need to produce, we will prepare the whole aluminum extrusion line plan for you.

A copper extrusion machine is a specialized equipment used in the manufacturing process of copper products. It is a mechanical device that applies pressure and force to the copper material to shape it into the desired form and size. In the extrusion process, the copper material is heated until it becomes soft enough to be forced through a die or a mold with a specific shape. The extrusion machine comprises a chamber, a ram, and a die, which work together to produce continuous lengths of copper material with precise dimensions and shapes. The machine is widely used in various industries, including construction, electronics, automotive, and plumbing, to produce a range of copper products such as pipes, tubes, wires, and profiles.

Aluminium extrusion press machine is the most important equipment to realize aluminium extrusion processing. We offer not only the main aluminum extrsuion press machine from 350ton to 5500ton type, but also all the other auxiliary equipments incluing the aging oven, the puller, the billet heating furnace,the cooling table and so on. Tell us what is your requirement, we can offer you the whole line plan.

Aluminum extrusion line including the aluminum extrusion press machine(this is the main press) and other auxiliary equipment (the muti-billet furnace, the aging oven, the cooling table, the puller), send us the drawings of the aluminum profiles you need to produce, we will prepare the whole aluminum extrusion line plan for you.

The straightener is a kind of equipment in the aluminum extrusion line, which is used to straighten the extruded aluminum profiles. Aluminum profiles may have some irregular shapes or slight bends during the extrusion process, which will affect their quality and processing performance. The function of the straightener is to adjust the aluminum profile through mechanical force to achieve the predetermined straightness requirements. The straightener is usually composed of a set of rollers or rollers. The aluminum profile passes through the feed port of the straightener, and the rollers exert force on it, so that the bent part is under pressure and gradually restores straightness. At the same time, the straightener can also correct the angle and curvature of the aluminum profile through appropriate settings and adjustments. The role of the straightener in the aluminum extrusion production line is very important. Through the processing of the straightener, the extruded aluminum profile can reach a higher quality standard, improve its appearance and performance. At the same time, the straightener can also improve the accuracy and efficiency of subsequent processing, providing a better foundation for the next processing step. In general, the straightening machine in the aluminum extrusion line can improve the shape and straightness of the aluminum profile, improve product quality, meet customer requirements, and provide better conditions and convenience for subsequent processing.

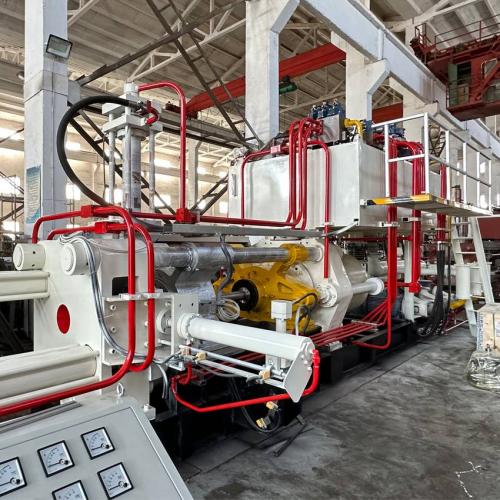

The aluminum extruder machine is the most important equipment of the whole aluminum press line. Our TEYUN has specialized in the aluminum main press for over several years. We have different types of the aluminum extrusion press machines, the 350ton, 550ton, 700ton, 850ton, 1000ton, 1250ton, 1650ton etc. even the 5000ton. The 1000ton aluminum extrusion press is the most popular type in TEYUN, because the 1000ton main press normally can suit the most production requirements. Our foreign customers usually start their aluminum profiles investment from the 1000ton type to produce the door and window profiles. As for the production of smaller profiles, you can choose the smaller type like the 550ton or the 700ton. TEYUN offers the whole plan of the aluminum extrusion line not only the aluminum extrusion main press but also the auxiliary equipment, tell us your requirements we will offer you the professional plans and solutions. Frame: The frame is the main frame of the aluminum extrusion machine and is used to support and secure other components. It has enough strength and stability to withstand the pressure and vibration during extrusion. Extrusion cylinder: The extrusion cylinder is one of the core components of the extrusion machine, mainly composed of a piston and a cylinder barrel. It provides pressure through a hydraulic system to push the aluminum material through the extrusion die for extrusion molding. The number and arrangement of extrusion cylinders depends on the specifications and design of the extruder. Heating system: The heating system is used to preheat or heat aluminum materials to improve the extrudability of aluminum materials. The heating system usually includes an electric heater, a stove or a roller heater, etc., and controls the heating temperature and time to make the aluminum material reach the appropriate extrusion temperature. Control system: The control system is used to control the operation of the extruder and the parameters of the extrusion process. It usually includes a control panel, PLC (Programmable Logic Controller) or computer control system. Operators can adjust extrusion speed, pressure, temperature and other parameters through the control system to control and monitor the extrusion process. Extrusion dies: Extrusion dies are used to form the cross-sectional shape of aluminum. It generally consists of an upper mold and a lower mold, with the required bosses, grooves and shapes. The extrusion die is installed in front of the extrusion cylinder of the extrusion machine and receives the pressure exerted by the extrusion cylinder to extrude the aluminum material into the required shape. Cooling system: The cooling system is used to cool the extruded aluminum profile, solidify and stabilize its shape. The cooling system generally includes a water cooling device or a spray device, which passes the cooling medium through the throat to cool the extruded aluminum material. Cutting off equipment: Extruded aluminum profiles may need to be cut to length. Cutting equipment is generally sawing machines, cutting machines, etc., used to cut aluminum profiles into the required length. What can the extrusion press machine making

Horizontal Powder Coating Line for Aluminum Profiles (1) The coating quality comply the powder coating  filed standard.The technology use electrostatic coating process . (2) The line is automatic by using conveyor chain system. (3) The powder coating system use magic quick color change centre powder coating booth.The recycling system has filtering system and big cycling. (4) The curing oven use tunnel oven, hot air circulation is reasonable and try to reduce the heat loss to assure the temperature inside is even.The oven heating system use the most advanced technology-direct heating in China. It can save heating 10%-20%. Moreover, no smoke and don’t need add smoking removing system. (5) The waste treatment equipment, waste air equipment will be supply by buyer. (6) The powder coating line fully consider the energy saving, labour protection ,environmental protection, fire protection and comply the regulation and rule standard of coating field. The horizontal powder coating line consists of the following machines: NO. Descripition of the Equipment Qty 1 Magic quick quick color change powder spraying room with recycle system(use the most advanced technology in China) 1 set Powder coating room body 6.7×1.9×3.3（L×W×H）m 1 set Big cyclone separating first stage recycle system 1 set filtration core filter second stage recycle system 1 set 2 Lifter:use the latest structure, effective stroke 2200mm 2 sets 3 Powder curing oven inner size: L30000×W 700×H 3710 (mm) 1 set 4 Suspension conveyor system：(Single point lifting 50kg  100 m) 1 set 5 Electric control system (main components use Schneider brand  3 sets Temperature control system for drying oven 1 set Powder coating system and recycling system (PLC use Siemens brand series products, touch screen use 10.4 inch colorful touch screen ) 1 set Curing oven temperature controlling, heating exchange  control system and conveyor frequency control 1 set 6 First stage hanger Aluminum beam 16 sets 7 Joint venture electrostatic powder spraying gun Manual powder spraying gun 2 sets Auto-electrostatic powder spraying gun 6 sets 8 Air compressor system   1 set
