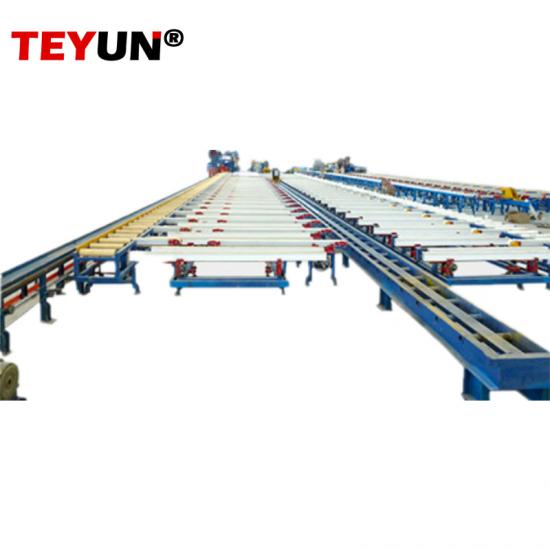

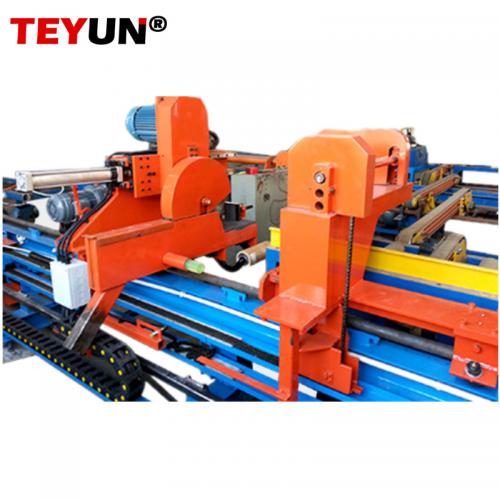

Aluminum Extrusion Cooling Table 26m*6m for 5 inch

The aluminum extrusion cooling table (26*6m) is mainly used for cooling and conveying the aluminum profile which realizes the straightening and cutting of the aluminum material through the cooperation of the tractor, the straightening machine, the interrupting saw and so on

  • Brand:

    Teyun
  • Product Origin:

    Jiangsu,China
  • Color:

    Customized
  • Shipping Port:

    Shanghai
  • Lead Time:

    20days
  • Warranty:

    1 year
  • Certification:

    CE
  • Voltage and frequency:

    380/50HZ
  • Application:

    For aluminum extrusion cooling system

Aluminum Extrusion Cooling Table 26m*6m for 5 inch



The aluminum extrusion cooling table (26*6m) is mainly used for cooling and conveying the aluminum profile which realizes the straightening and cutting of the aluminum material through the cooperation of the tractor, the straightening machine, the interrupting saw and so on

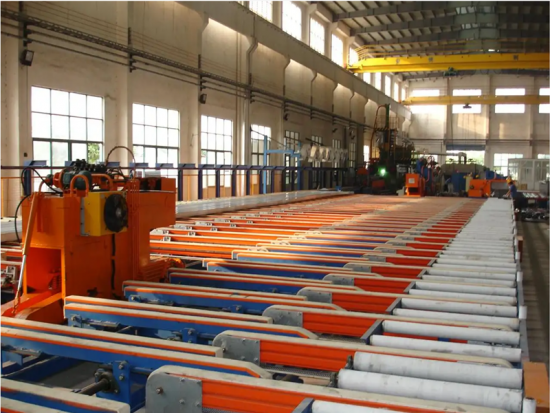

aluminum extrusion cooling table

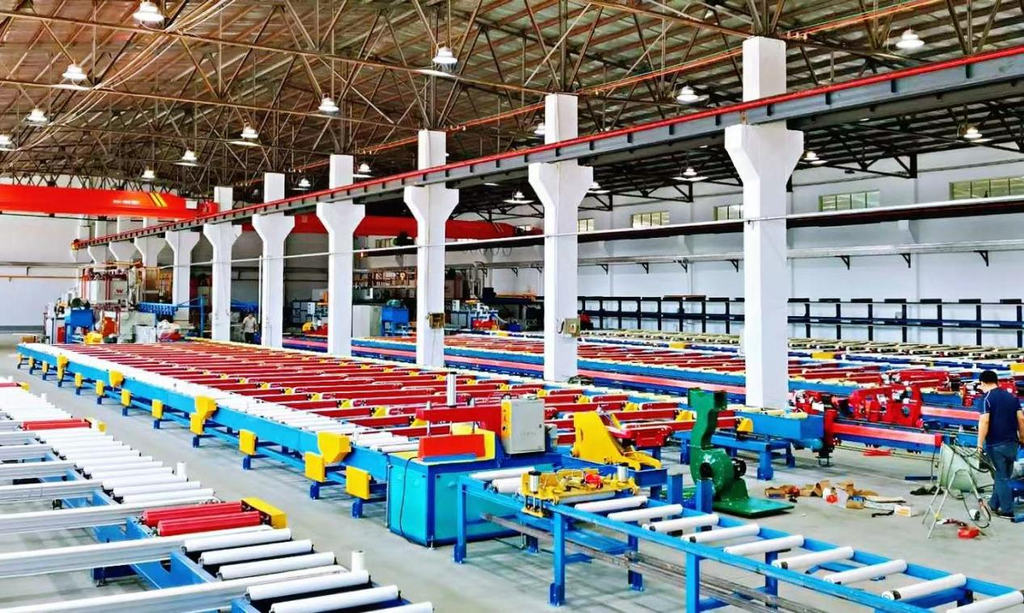

The aluminum extrusion cooling system consists of the following parts:

1.Initial Table

The initial table is located at the discharge port, equipped with a lifting platform, which can smoothly pass the largest profile and the smallest profile. At the same time, it is equipped with 2 sets of profile clamps, which can help the discharge position of the profile to be in the center and improve the yield of the profile.



2.Run-out Table

Run-out table is made of strong profile steel.The upper part is equipped with a driven roller and the surface is covered with heat-resistant felt. The roller table can be raised and lowered vertically and driven by a hydraulic cylinder.On the basis of meeting the height difference of the lifting and lowering, the height of the lifting structure is minimized. The side plate made of the bending parts and frame reduce the failure rate and improve the aesthetics and safety. Side rollers on the outside of the roller table to prevent the profile from deviating and the side rollers can be automatically raised and lowered without interference with puller clamp.



3.Convey Table

The convey table is designed to convey profile from run-out table to cooling bed. The transmission system ensures the smooth lateral transportation of the entire device. The conveyor belt is driven by a chain and the chain is a double-row chain. The transmission belt is driven by reducers to drive the transmission shafts, which are driven by a sprocket and chain mechanism. The belt is designed with a structure to prevent belt deviation, so that the belt will run more smoothly and reliably for a long time without deviation.


4.Cooling Bed

The cooling bed is mainly responsible for the cooling of the profile. The conveyor belt is driven by a chain, and the chain is a double-row chain.It can automatically adjust the discharging distance and the profile is moved by a belt-type aluminum alloy feeding mechanism.


5.Straightening Table

The straightening machine adopts cross-stretched belt-type aluminum alloy feeding material across the bridge, equipped with a gear transmission mechanism. Its discharge spacing can be adjusted and the belt can be controlled in forward and reverse rotation.

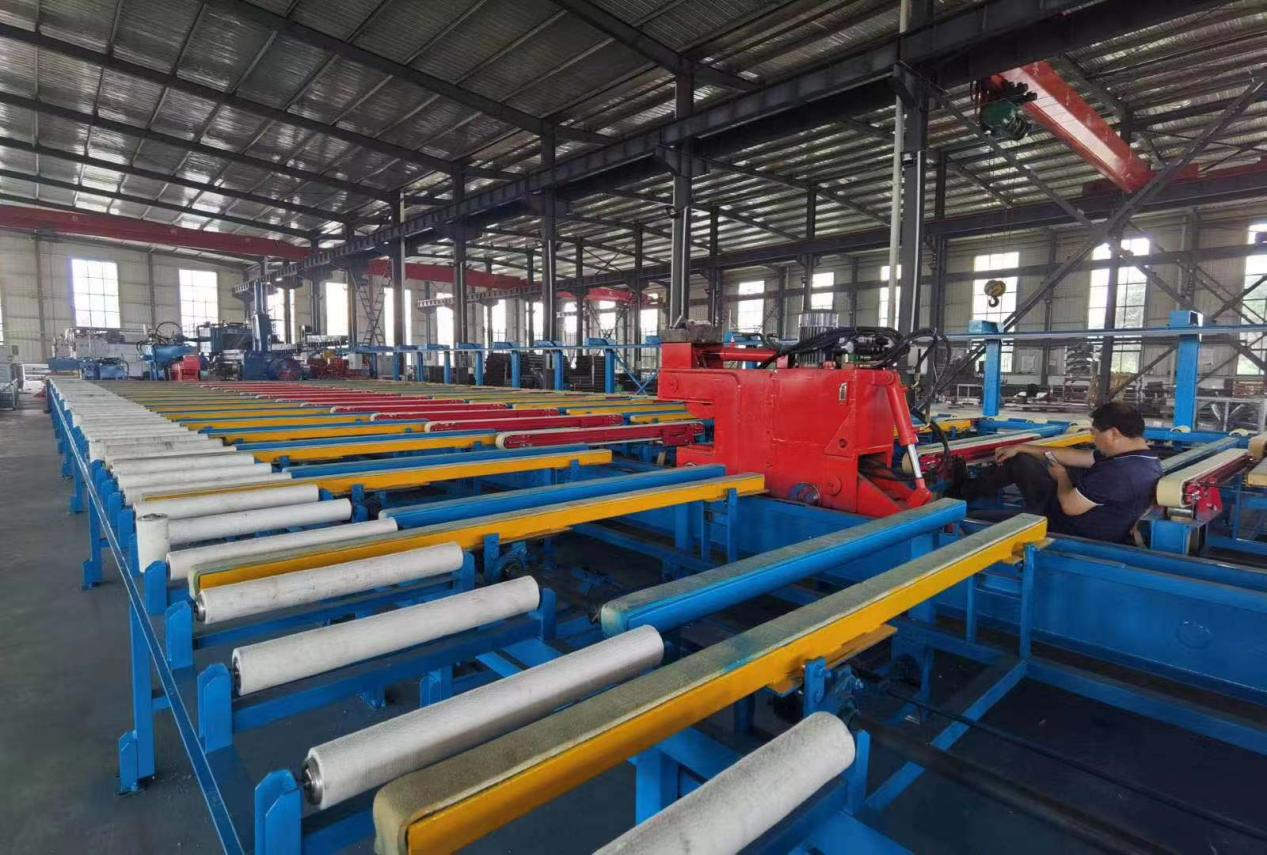

6.Straightening Machine

The straightening machine is mainly used to stretch the aluminum profile to make it straight and obtain good straightness.The straightening machine is divided into fixed front jaws and moving rear jaws. The track base is made of steel plate and section steel welded structure. There is a steel guide rail above the base, which can withstand the force generated when it is stretched.The two straightening heads are each equipped with a hydraulic station.

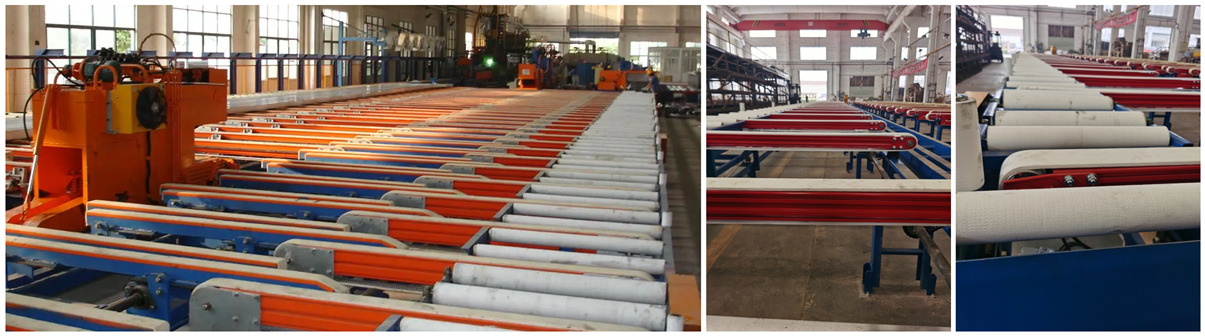

aluminum extrusion cooling table

7.Storage Table

The storage table is a belt-type aluminum profile feeding mechanism and can adopt hydraulic lifting. The function of the storage table is to create a worktable for the finished saw and then convey the profile to the finished saw feeding roller table.


8.Cutting Table (including fix-length table 7m )

The cutting table was for final profile cutting. The cutting table is equipped with fix-length table for cutting length you need.The debris generated in the sawing process is recovered by a special device to prevent people from inhaling it.


Finishing Saw

The cutting table equipped with finishing saw. The feed motion of the saw blade is hydraulically driven and has a omnidirectional sliding guide structure. The rotating movement of the saw blade is the rotation of the motor pulley and the clamping of the profile product depends on the action of the air cylinder. The saw blade is equipped with automatic water spray cooling and lubrication



1. Sloping with hydraulic lifting, driving high -temperature drums with a chain.

2. Slide the platform to adopt a high temperature drum to reduce the wear of the roller due to high temperature.

3. Use belt -type temperature -resistant felt to reduce the wear of aluminum materials.

4. The aluminum profile is shifted and transported to keep the appropriate distance between aluminum profiles.
